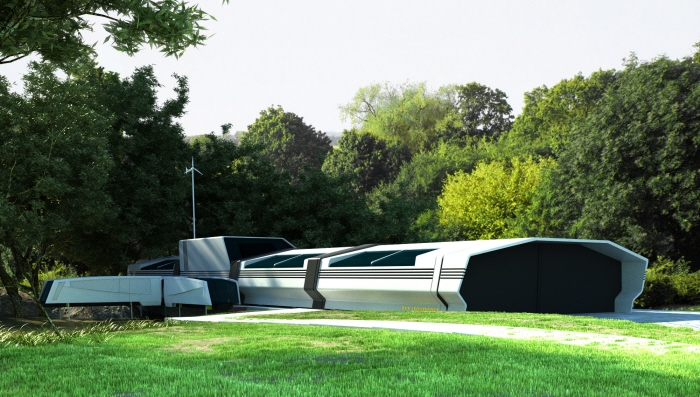

Mobile large space building Armadillo

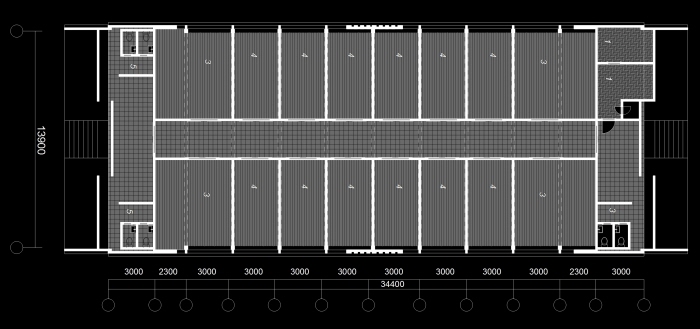

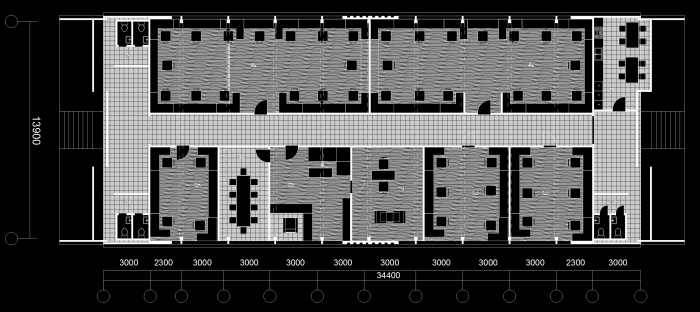

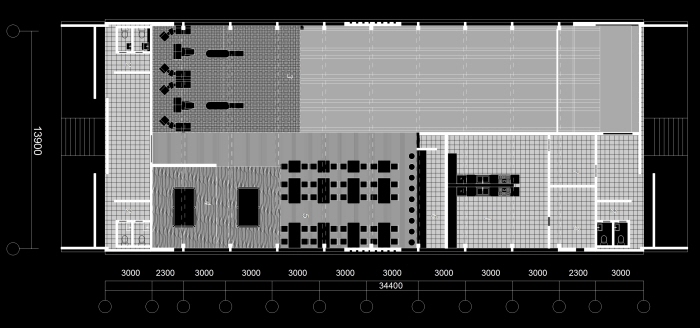

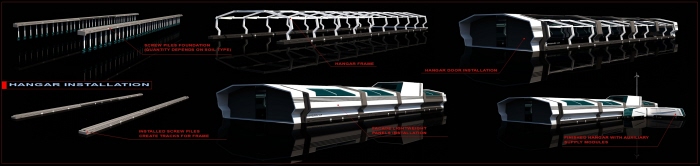

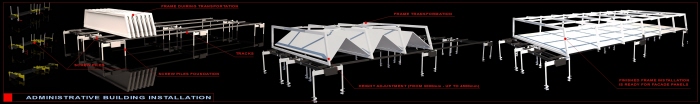

Module Armadillo is designed to provide large buildings like hangar and administrative buildings in a disaster zones. This building consist of frame, screw files foundation and lightweight facade panels. Dimensions of building depend on frame. They are width 9000mm, 12000mm, 15000mm. Length depend on amount of sections in the frame from 15000mm to 60000mm. Height is from 3000mm up to 4500mm. This structure can be suitable for such buildings as: hospitals, hangars, warehouses, communication centre, schools, offices, pavillions, and any large space building. Installation is simple. Everything begins with piles that are screwed into soil. Above all sections with screw piles are tracks. Frame is installed on track. It is transformed by elongation along tracks. After that gates and lightweight facade panels are installed. In the end module with water and energy suplly is connected. This structure is compatible with shipping containers.

Domaretskii Volodymir
Interior designer, architect Киев, Ukraine
