These exercise bikes were designed during my internship at Reflex Design inc. in which I was given an existing frame assembly to design a new casing around.
![](https://s3images.coroflot.com/user_files/individual_files/191543_dASVeWSbI1tuybi_BfXhqgmFU.jpg)

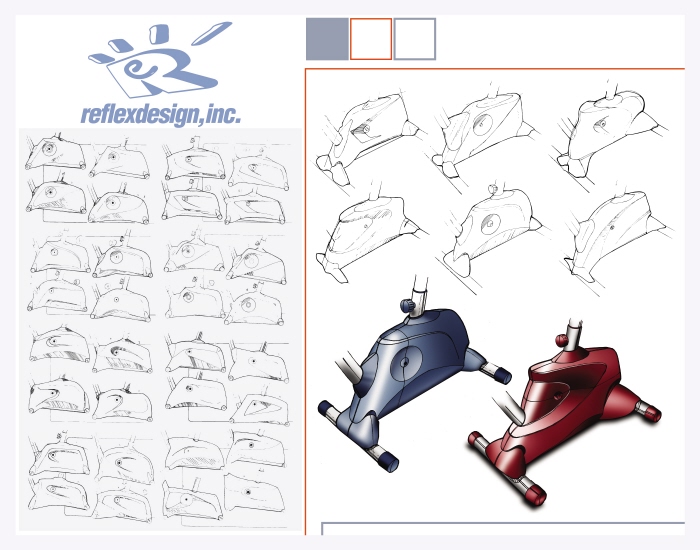

I did more sketching at Reflex than I could possibly show, finalized a couple concepts, and made a few different Photoshop renderings before moving into CAD.
![](https://s3images.coroflot.com/user_files/individual_files/191543_bEcT2UMt5dJB_jnkhoHKtZD4L.jpg)

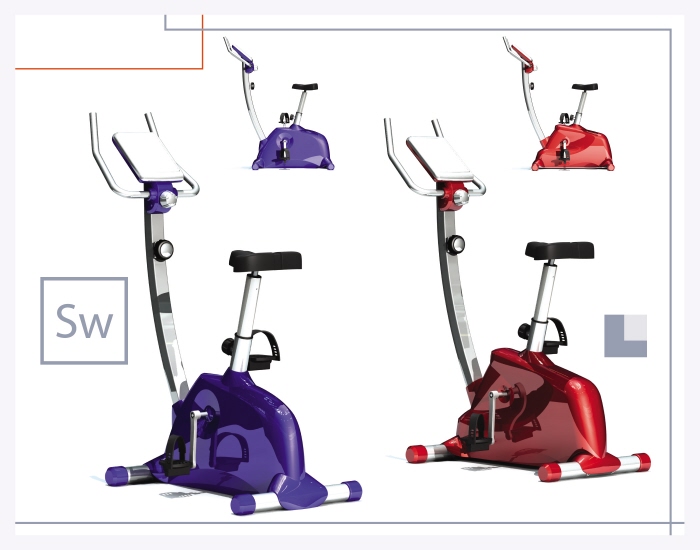

The final CAD models turned out well and were designed to be ready for manufacturing. A big thanks to Jeff, John, Josh, Anderson, and DJ at Reflex.
