A company specialzing in medical equipment wished to merge the LED technology surgeons use with recreational SCUBA and skin diving. Also, active cooling with a heat sink had to be integrated into the design.

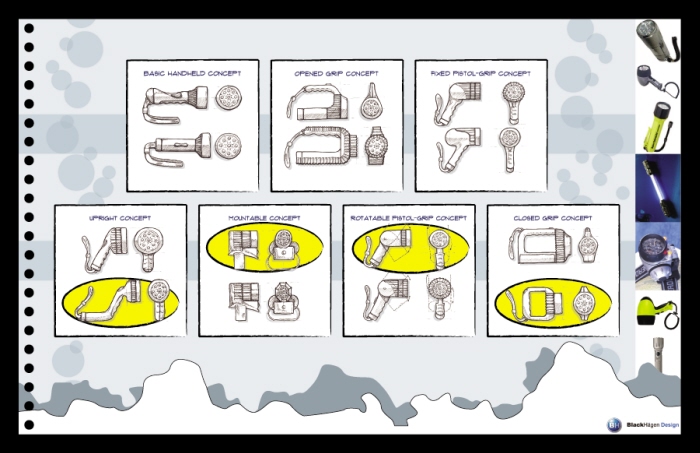

A selection of the 40 concepts. Here shows 14 concepts of 7 different divelight styles.

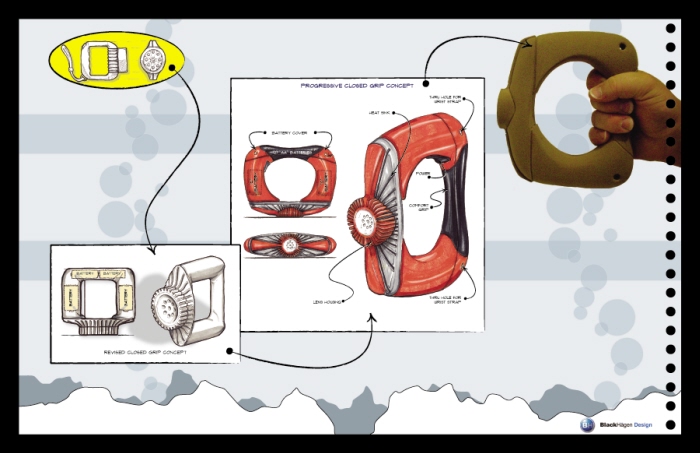

Closed-grip concept shown from initial concept, to revised concept, to progressive rendering, to hand model.

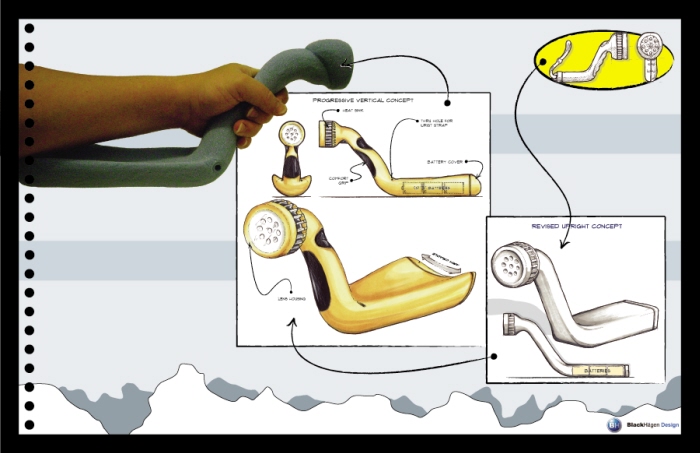

Vertical concept shown from initial concept, to revised concept, to progressive rendering, to hand model.

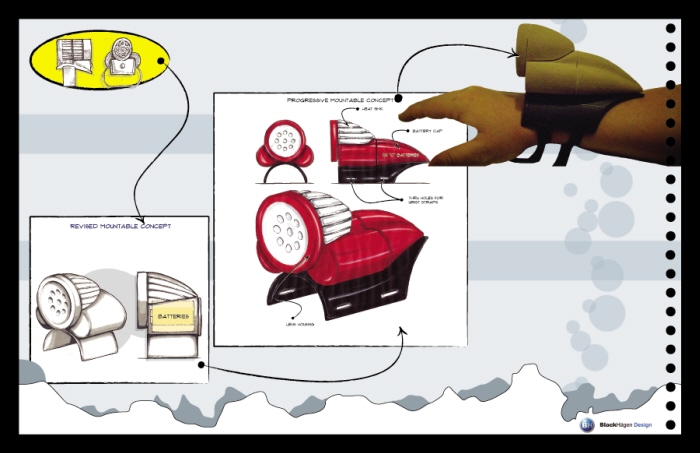

Mountable concept shown from initial concept, to revised concept, to progressive rendering, to hand model.

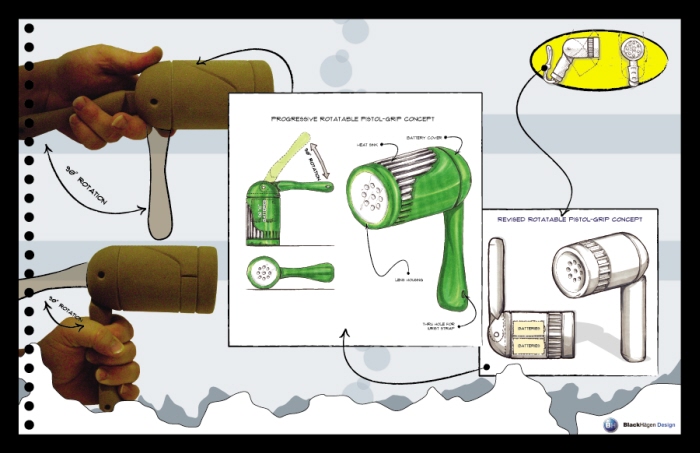

Rotatable pistol-grip concept shown from initial concept, to revised concept, to progressive rendering, to hand model.

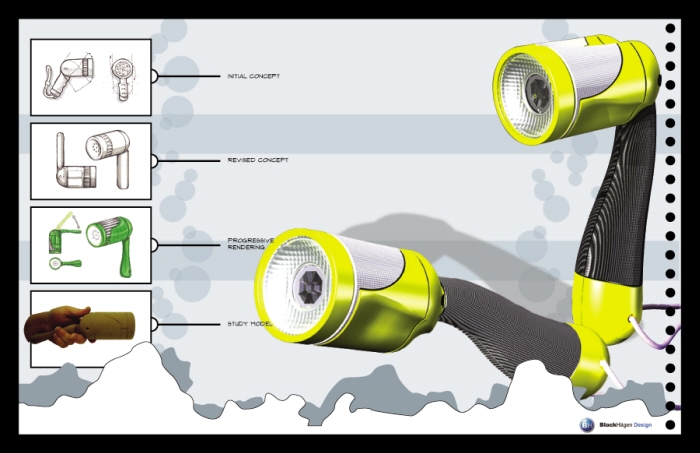

SolidWorks model of rotatable pistol-grip concept.

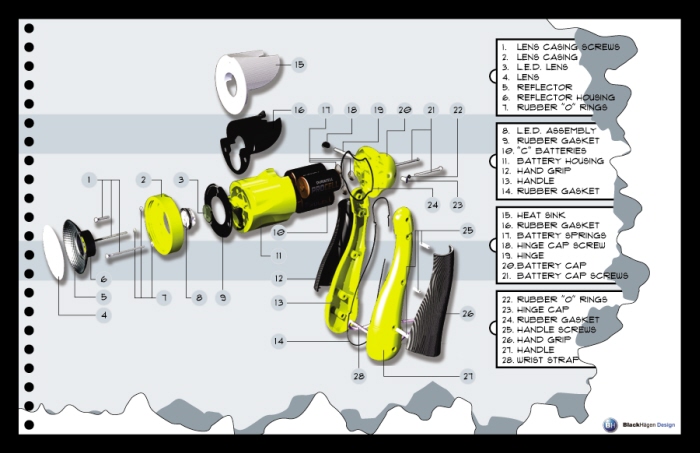

Exploded view of SolidWorks model.
