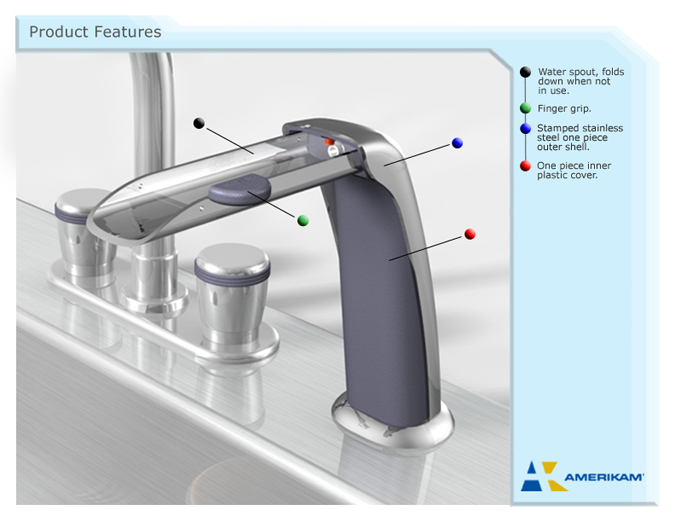

Amerikam Filtered Water Dispenser - Various design features.
![](https://s3images.coroflot.com/user_files/individual_files/56119_nzcuid7v3gk2o7d2_gmjdfzlh.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_vlPQ9dQdvGtWlSLAyfdw5Tv8d.jpg)

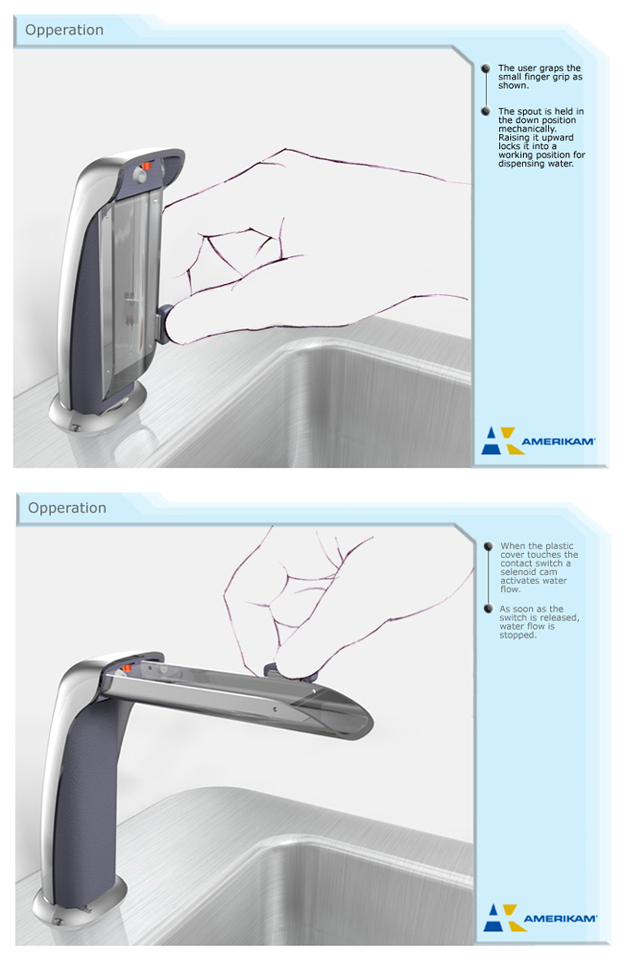

Amerikam Filtered Water Dispenser - Demonstration of faucet opperation. Spring Steel cam mechanism holds spout in locked down or up position. When the faucet depresses a contact switch water flow is activated through a selanoid cam system.
![](https://s3images.coroflot.com/user_files/individual_files/56119_fbzl5r7nrcu6yjedlfk5ibxyp.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_zejkpqokl7u0weafqhws34hj2.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_x6gf2bfnl_uzfykwnf7bujgwe.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_kssyqal8uknkni559sxf4qrhs.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_lyxj2du_dmjlmcijhxwhfxwnt.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/56119_W1SpHHJYUcbvt8AF3R69mTl0o.jpg)
Ideation Sketching - This early concept was based on a telescoping faucet design that could be retracted when not in use.
![](https://s3images.coroflot.com/user_files/individual_files/56119_3d_DWrciCTti4lsaAOCzzBPyd.jpg)
Ideation Sketching - This concept involved the use of a clear plastic reservoir that would fill with water then drain when not in use.
![](https://s3images.coroflot.com/user_files/individual_files/56119_bEZlihzREfeoDpEHOiXjHcGIU.jpg)
Ideation Sketching - This concept was based on making the filtered water dispenser a multi-function fixture. A normal continuous pouring head faucet head and a spray head for washing fruit and vegetables could be used. It could also double as a towel dryer.
![](https://s3images.coroflot.com/user_files/individual_files/56119_dA2HRzAIIoh2TTNDT_T8MlAJF.jpg)
Ideation Sketching - This concept became the basis for the project. A fold down space saving spout which would minimize the foot print of the water dispenser in an already crowded sink area.
![](https://s3images.coroflot.com/user_files/individual_files/56119_sfd6G27GDz1QMxCqSwj08PAQk.jpg)
Ideation Sketches - The simple notion of having a space saving and compacting design with a swing arm spout that locked in place via detents was the basis for concept development.
![](https://s3images.coroflot.com/user_files/individual_files/56119_4EVwqpDZqLIevJ3nd72rbwZVB.jpg)
Ideation Sketching - This concept involved a spout that folded down and slid out to extend further.
![](https://s3images.coroflot.com/user_files/individual_files/56119_5_qTFPCukrMEa5cvRw_8xLJoF.jpg)
Ideation Sketching - This concept was based on a spout that had 2 halves which would rotate up from a compacted position and snap together.
![](https://s3images.coroflot.com/user_files/individual_files/56119_E4KPt5eesIiWMmiTohNSDdIjd.jpg)
Ideation Sketching - This concept utilized a spout which slid up from behind the water dispenser and sat on a projection which also included a contact on/off switch.
![](https://s3images.coroflot.com/user_files/individual_files/56119_WAL9l0jOBWk8nYTlexZuDUVdc.jpg)
Ideation Sketching - The first exploration of the concept of a spout which folded down when not in use and locked in place.
![](https://s3images.coroflot.com/user_files/individual_files/56119_KHenuNA8RI1y1hqjK0RGwxXkP.jpg)
Ideation Sketching - Further refinement of the fold up spout concept. This one relied on an on/off contact switch beneath the projection of the dispenser head to start water flow.
![](https://s3images.coroflot.com/user_files/individual_files/56119_m1CJVKta9QwfOMCurolsId_BV.jpg)
Ideation Sketching - The basis for the final design concept. A spring steel cam design is utilized to lock the arms of the spout in place and hold the spout in position.
![](https://s3images.coroflot.com/user_files/individual_files/56119_Bw28IMdpsrj3yYxhQBAuOicrx.jpg)
Ideation Sketches - Various approaches for the on/of switch for water flow.
![](https://s3images.coroflot.com/user_files/individual_files/56119_agoe9YtiNpMVW7breY9q2XvZz.jpg)

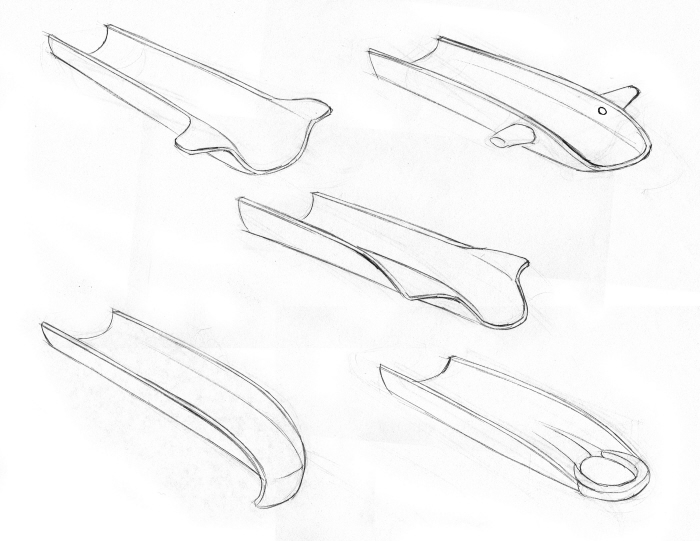

Ideation Sketches - Various ideation sketches for methods of lifting the spout via one-handed operation. My goal was to arrive at a solution that presented an intuitive solution to lifting the spout up without touching the inside of the spout and "contaminating" the water flow.
