Sketch Rendering - Redesigned Electronic golf club head. Reduced manufacturing costs by 25%. Original version required difficult hand welding to extremely thin and chromed metal, which resulted in a high scrap rate during production. Original design had a large percentage of product failures and returns. New design removed those issues that caused the failures.

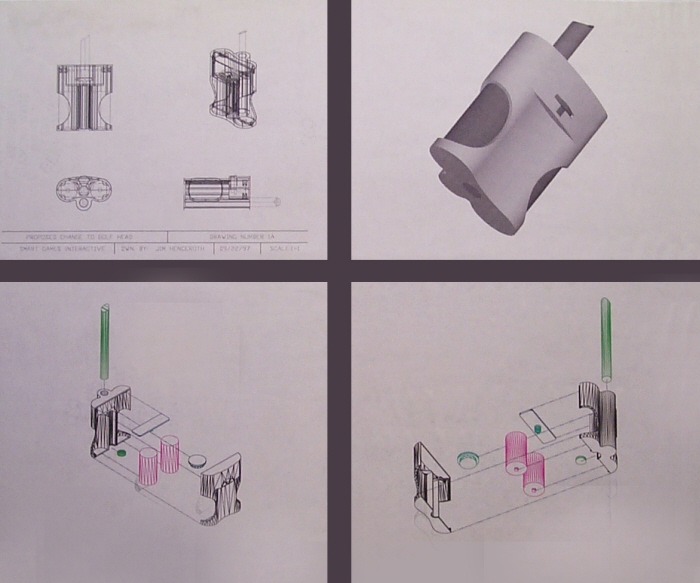

3D CAD Drawings - Redesigned Electronic golf club head, with a 25% savings in manufacturing costs. Original version required difficult hand welding to extremely thin and chromed metal, which resulted in a high scrap rate during production.

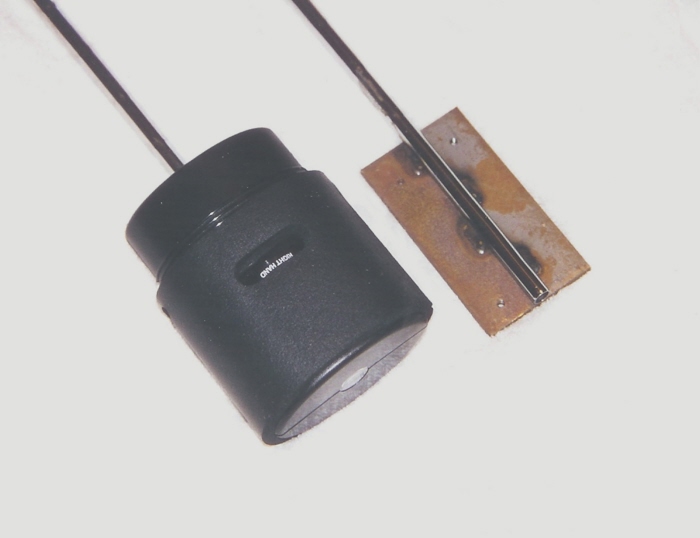

Existing Club Head that was Redesigned - Redesigned Electronic golf club head, with a 25% savings in manufacturing costs. Original version required difficult hand welding to extremely thin and chromed metal, which resulted in a high scrap rate during production.
gLike
Electronic Game Golf Club

Redesigned existing electronic golf head. Eliminating current high-cost manufacturing procedures such as; precision thread machining and hand welding thin-wall tubing. New design eliminates the expensive steel plate counterweight, by instead utilizing larger batteries for the power source. Overall improving quality, reliability, and appearance, while reducing manufacturing costs by 25%.
