This was a collaborative project between TY Lin International and Safdie Rabines Architects. My involvement extends to the 3D Modeling, Rendering, and some of the graphic details.

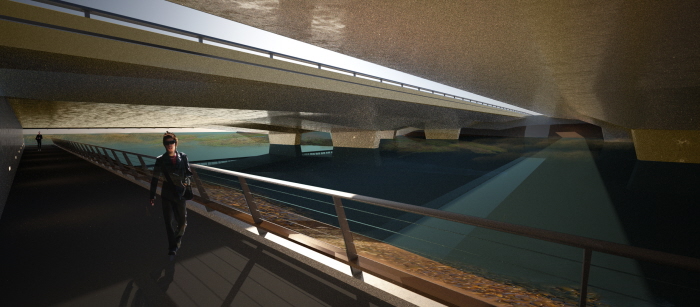

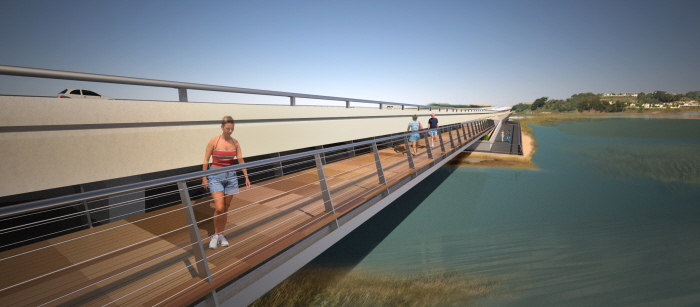

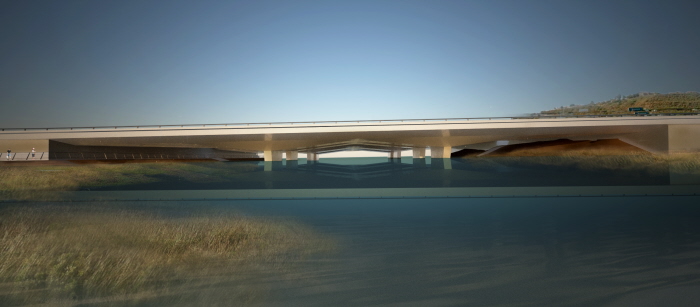

The shallow lagoon bridges require a special design approach that still allows pedestrian users to cross from east to west and south to north and maximizes the use of the volumes under the bridge to create a space that does not feel cave-like. The Batiquitos Lagoon crossing is an example for the low lagoon bridge type. A tapered box bridge that begins its springings above the 100-year flood line is envisioned. The use of the tapered section adds needed height and articulation to the underneath portion of the bridge, enhancing the user experience from below.
