This is an offroad Go Kart that I began building when I was still in second level school.(2006) I worked on it whenever I got the chance and completed it in 2008.
The original chassis was desgned for a 5.5hp Honda GX160 Multi purpose engine. However I wanted to fit a more powerful motorcycle engine. The engine I chose was a CB500 parallel twin with 57hp. In the end the frame had to be completely redesigned to suit the more powerful engine.
![](https://s3images.coroflot.com/user_files/individual_files/311553_KpF2QCOwsYSXsOlUlgAfFRSMj.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/311553_tUT3xrwJQkcO2kM7CNAn0sx_A.jpg)

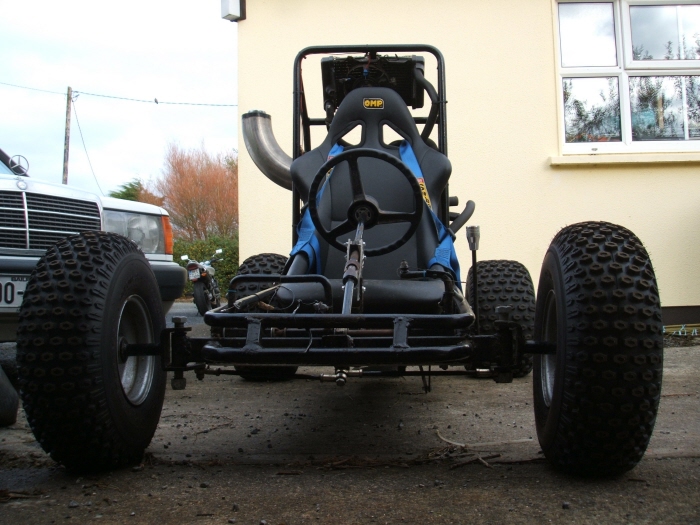

The finished vehicle turned out to be very fast and has excellent traction on dry sand, tarmac, gravel and grass. I hope to design and build a follow up version in years to come.
![](https://s3images.coroflot.com/user_files/individual_files/311553_8F8vkLDqgklEazT5PlZmf986u.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/311553_OqYwEEvR8UZYqPskIHmgkR7U7.png)
Go Kart - This is a Rhino 3d Model of the Go Kart frame.
I revisited the Go Kart for an assignment in college in my 2nd year model making module. The assignment was to make a detailed model of your choice while using a number of model making techniques.
![](https://s3images.coroflot.com/user_files/individual_files/311553_ua_vcPSmQR9yW0nfl2L_Kqncp.jpg)
The frame was constructed from styrene and lime wood. Various grades of Polyurethane foam were used to model the chair and the engine block.
![](https://s3images.coroflot.com/user_files/individual_files/311553_fNTV890c8muPdcPUz_XVYKW7a.jpg)
The brake disc and sprocket were also made from PU foam. To shape them a rotary tool was used as a mini lathe and a craft knife as a parting tool.
![](https://s3images.coroflot.com/user_files/individual_files/311553_09xdtoCCAp0aLqHgDNV5_eREj.jpg)
A working steering rack was constructed from steel & aluminium.
