Main Kitchen - This is the main house's kitchen area. The dining room is connected, and the living area is on the other side of the 3 in. partition to the right.
(SketchUp, Podium & Photoshop)
![](https://s3images.coroflot.com/user_files/individual_files/314577_7TuHZ5QtUTyIJxzGkxOy1I6uR.jpg)

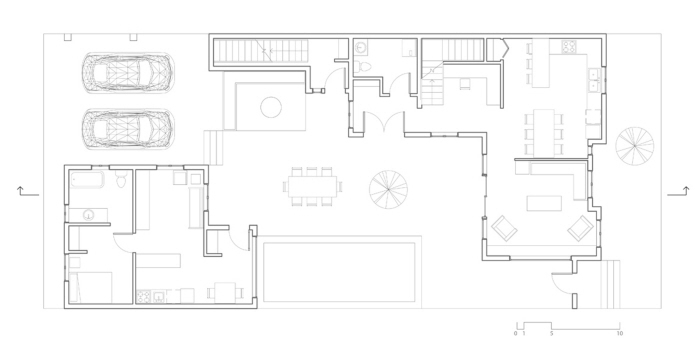

First Floor - The entrances to every single living space is in the central courtyard area. Grandmother's suite is functional and small, and the main house has a living space, kitchen, living space and bathroom area. The washer/dryer in the main bathroom is accessible to Grandmother. The entrance to the apartment is next to the fire pit in the courtyard.
(Revit & AutoCAD)
![](https://s3images.coroflot.com/user_files/individual_files/314577_KF8VZAi_bjHre7oRYb2t7ZR3i.jpg)

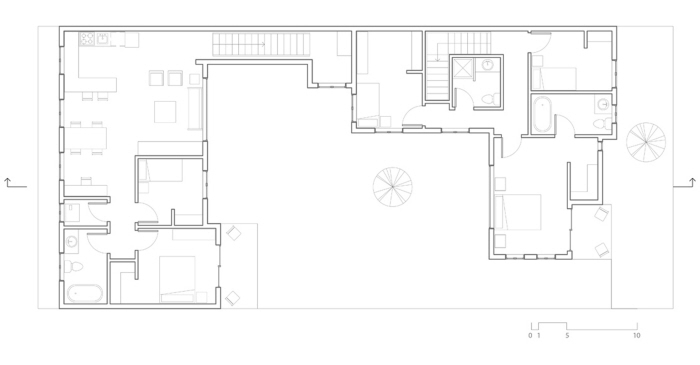

Second Floor - The left portion of the second floor is the apartment for part of the family. The right portion is the main house.
(Revit & AutoCAD)
![](https://s3images.coroflot.com/user_files/individual_files/314577_PVcy0KBPdg1ZTVngyiPRBtdmJ.jpg)
Diagrams - These diagrams show the space that is taken up by each separate living space. The first image is of the main house, second is the apartment and the third is Grandmother's suite.
(AutoCAD & Photoshop)
![](https://s3images.coroflot.com/user_files/individual_files/314577_6iIusm5qT2UPcJjaiSEcHzAXZ.jpg)
Main Living Area - This is the main house's living area. There is a 3form [wavy] wall on the right, which is adjacent to the main entrance to the courtyard. The separation wall to the left borders the kitchen/dining area.
(SketchUp, Podium & Photoshop)
![](https://s3images.coroflot.com/user_files/individual_files/314577_HduW8s8OBvZXVvtryazUfu2bi.jpg)
Center Courtyard - This is the center seating area of the courtyard. There is a 1' deep pond to the right with a few goldfish in it. This view faces the main house, entrance to the entire courtyard, and the apartment entrance is to the left.
(SketchUp & Podium)
![](https://s3images.coroflot.com/user_files/individual_files/314577_7PoMNTAsGkkDHndd4fYWdQ5mh.jpg)
Fire Pit of the Courtyard - Looking past the seating area of the courtyard, there is a fire pit that will sit six easily. The car port is straight ahead, and Grandmother's suite is to the left.
(SketchUp, Podium & Photoshop)
