POWER SUPPLY HOUSING

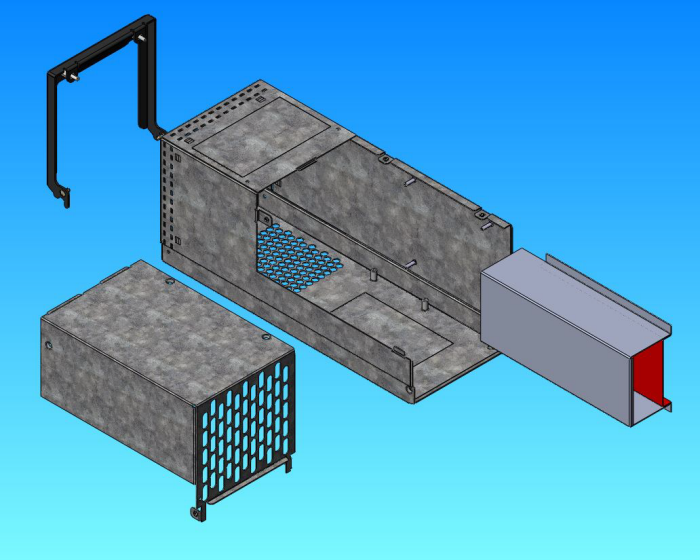

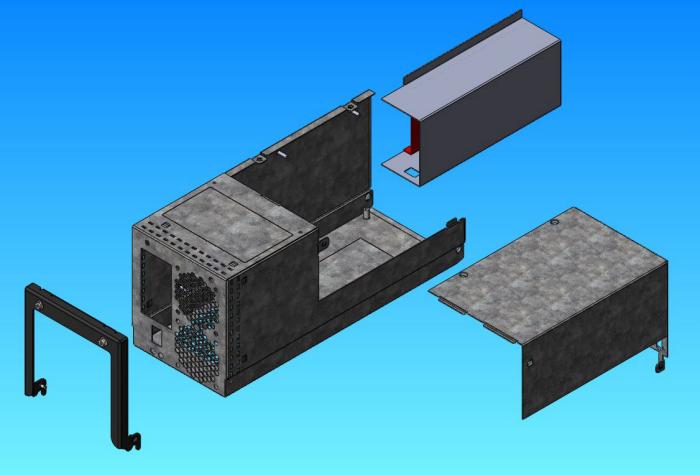

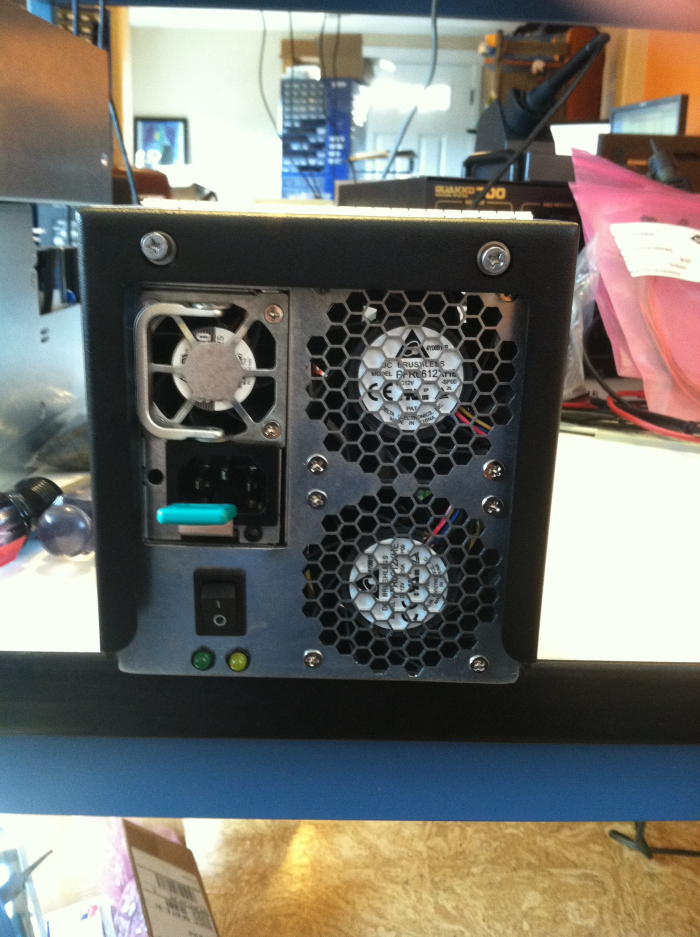

Reverse engineer chassis for new internals and overall improvements for new production run.

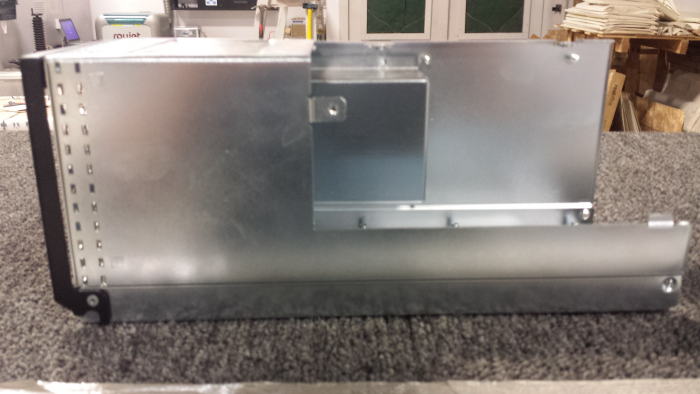

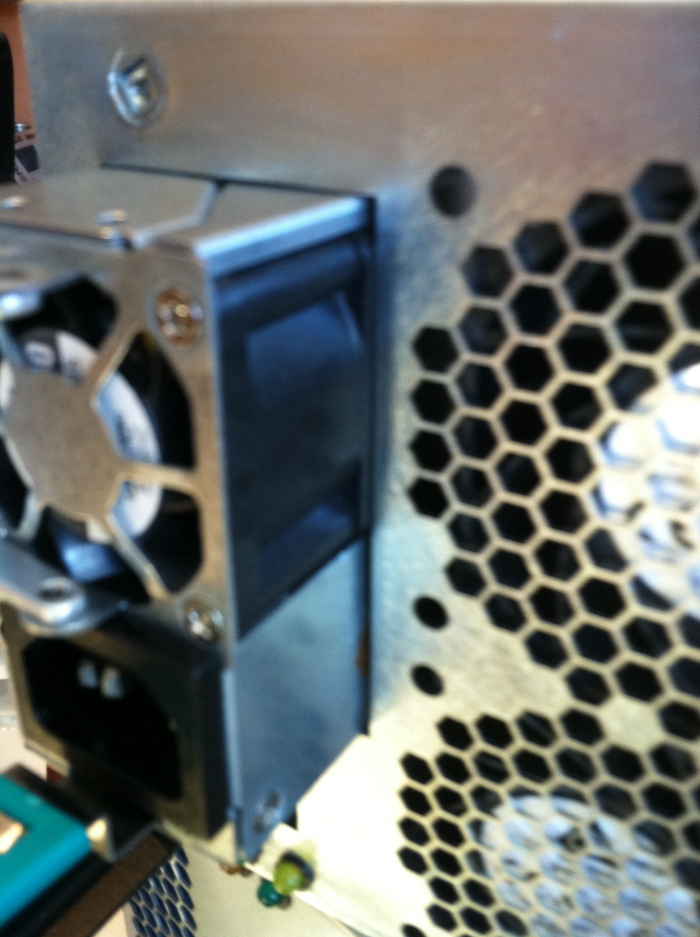

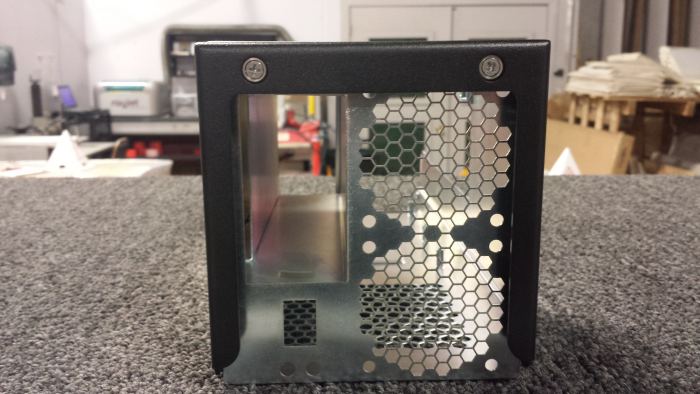

Place a smaller blade style power supply inside existing space with new control circuits, PCB mounting, improved chassis access and airflow.

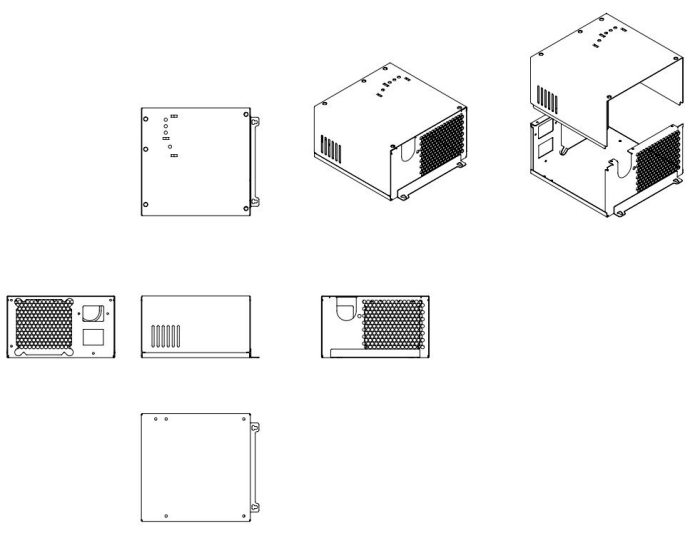

Designed in SolidWorks for sheet metal fabrication,
Material: Galvanized steel and self-clinching fasteners.

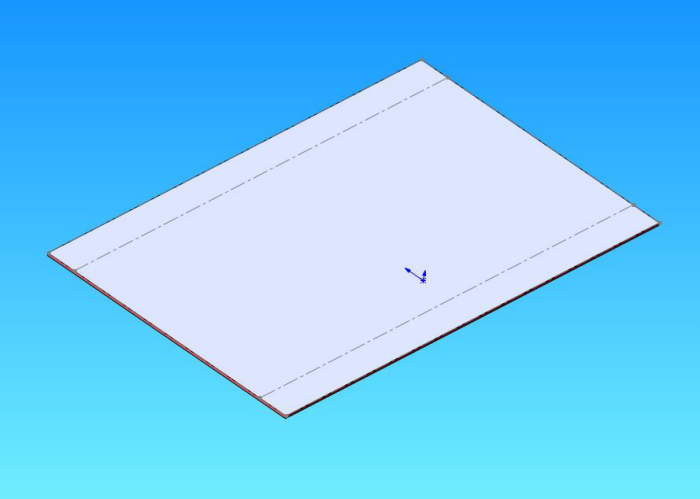

Cover Evaluation: Features 56, Solids 1, Surfaces 0
Total rebuild time in seconds: 1.40

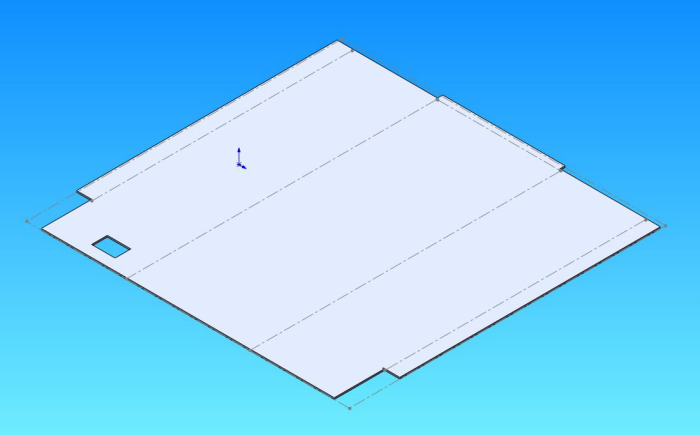

Base Evaluation: Features 98, Solids 1, Surfaces 0
Total rebuild time in seconds: 3.54

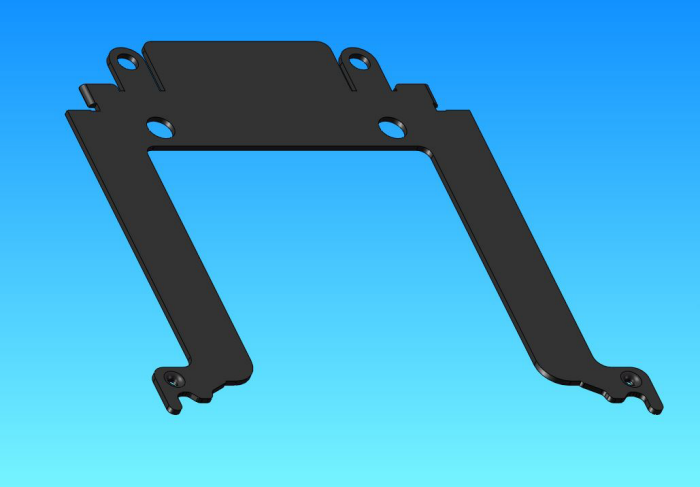

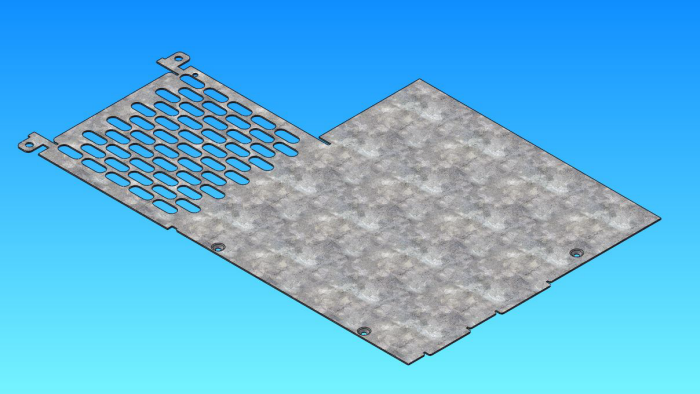

Blade Drive Bracket Evaluation: Features 21, Solids 2, Surfaces 0
Total rebuild time in seconds: 0.23

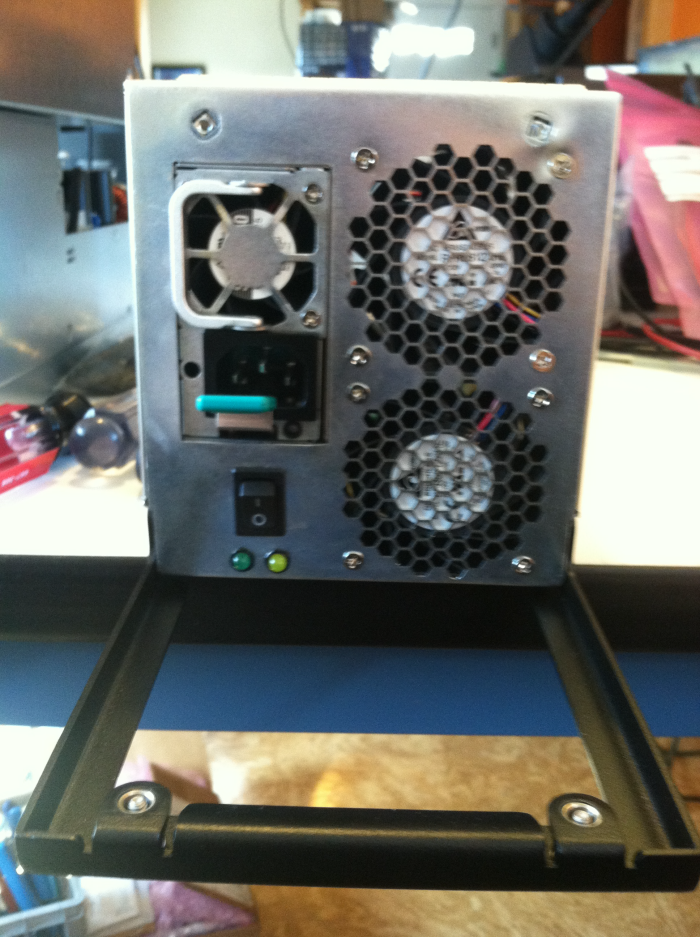

CAM Handle: Features 36, Solids 1, Surfaces 0
Total rebuild time in seconds: 1.03
