DISTRIBUTION SKID, OZONE

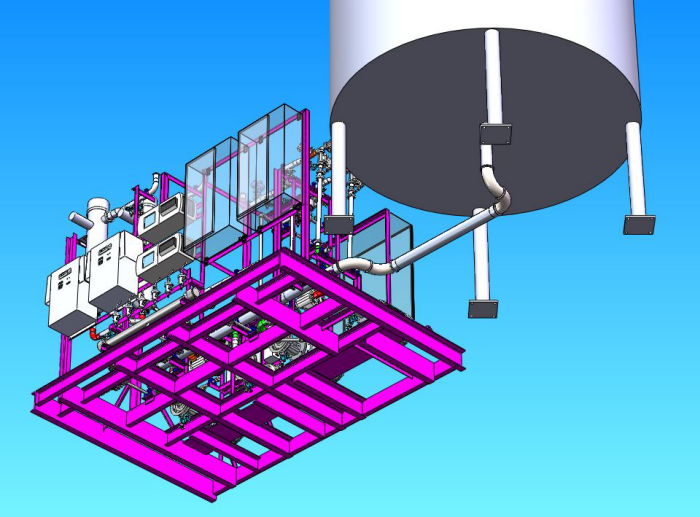

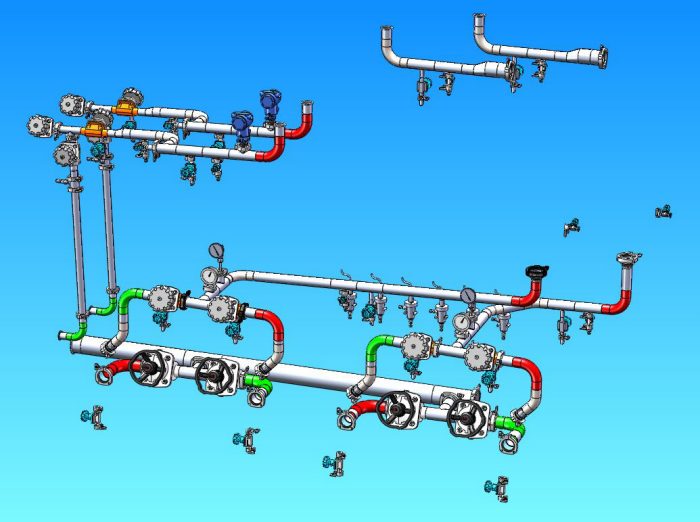

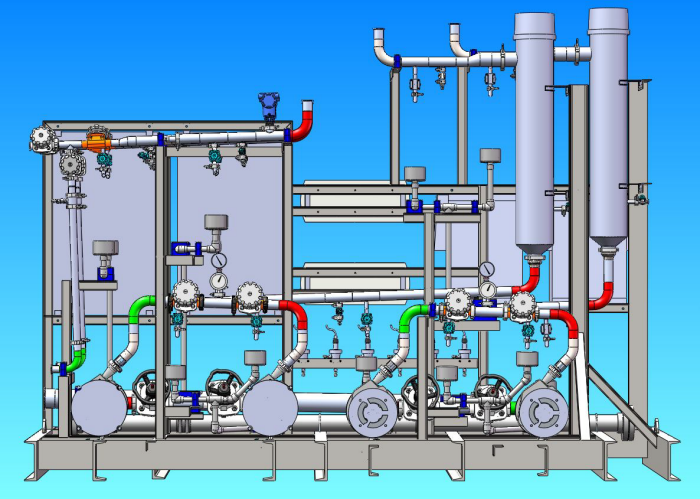

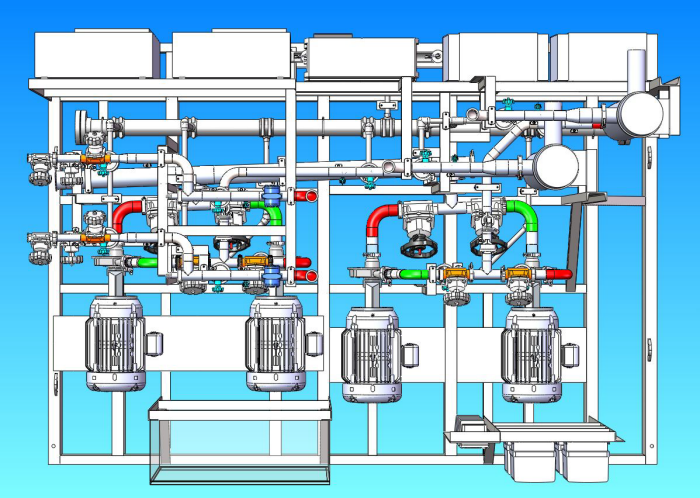

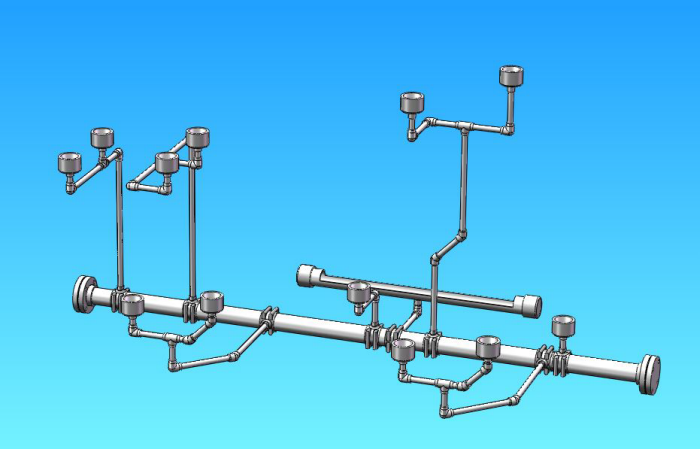

Distribution skid, stainless steel frame, sanitary product pipe with 2 degree or better slope for drainage, 4x pumps & VFDs, 2x Ozone Generators, 3X UV Ozone removal, 2X TOC Analyzers, CPVC drain lines
Designed and documented in SolidWorks from customer and engineering P&ID.
Total number of components 946
Parts: 764
Unique Part Documents: 178
Unique Parts: 85
Subassemblies: 182
Unique Subassemblies: 47
Unique Subassembly Documents: 36
Maximum Depth: 5
Number of Top Level Components: 156
