Luxury Jet Galley - Re-design of a galley interior, working in conjunction with a luxury jet manufacturer.
![](https://s3images.coroflot.com/user_files/individual_files/110020_yjCtDydLlpuHxVSAxmziCgXc7.jpg)

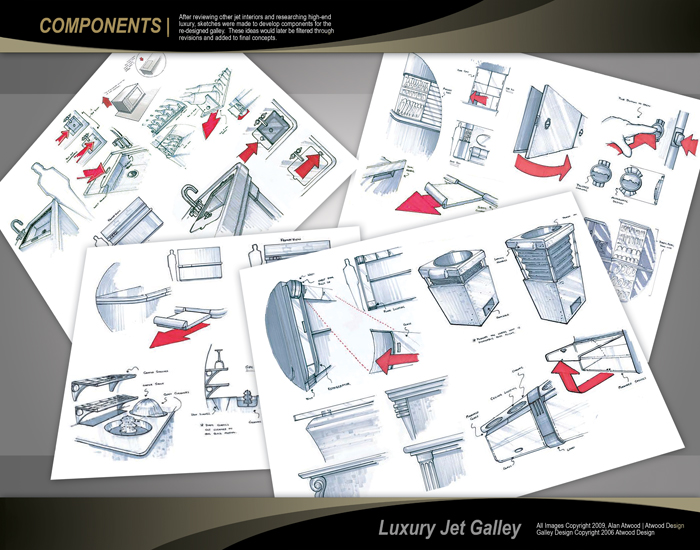

Component Sketches - Re-design of a galley interior, working in conjunction with a luxury jet manufacturer.
These sketches show various solutions to problems encountered during research, including, but not limited to: space saving, weight issues, appliance needs, and aesthetic appeal.
![](https://s3images.coroflot.com/user_files/individual_files/110020_8PhpDecIBin1XOn4Y9RmnZtTn.jpg)
Style Options and Layouts - Using a bottom-up approach, each component was grouped (based on functionality) into various style options. These layouts were presented to the engineers for assessment and review. A final design option would emerge, following several revisions.
![](https://s3images.coroflot.com/user_files/individual_files/110020_gEhSL1ENIOiRqj_p61GvQRy9A.jpg)

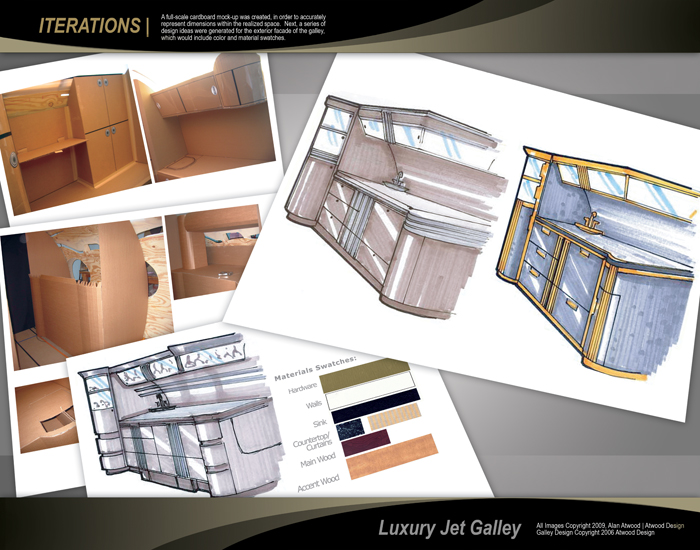

Design Iterations - Full-scale cardboard mock-up generated to realize actual proportions and make adjustments. Final design iterations created to determine overall aesthetic. Material swatches to follow.
![](https://s3images.coroflot.com/user_files/individual_files/110020_s_HwFQe5CWk5lacTiXb86XMty.jpg)
Final Mock-Up - Re-design of a galley interior, working in conjunction with a luxury jet manufacturer.
Mock-up is scaled 1:1
