Using the internal components from this Toro leaf blower, redesign the leaf blower from the inside out.

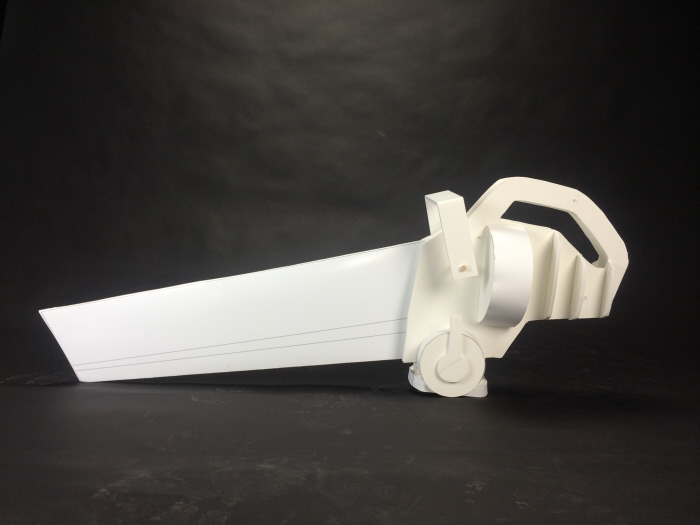

Initial 3D model out of foam core.

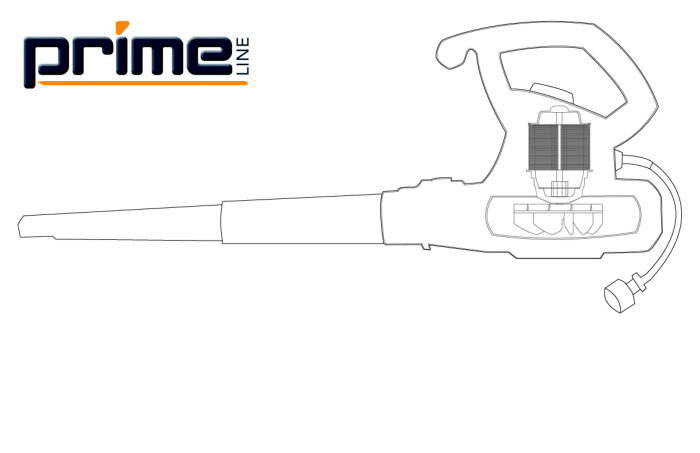

Illustrator outline of cross section of my new design. Shows the motor and fan mechanism that I rotated to be vertical instead of on its side.
Sketchbook Pro rendering showing context and application of the new design

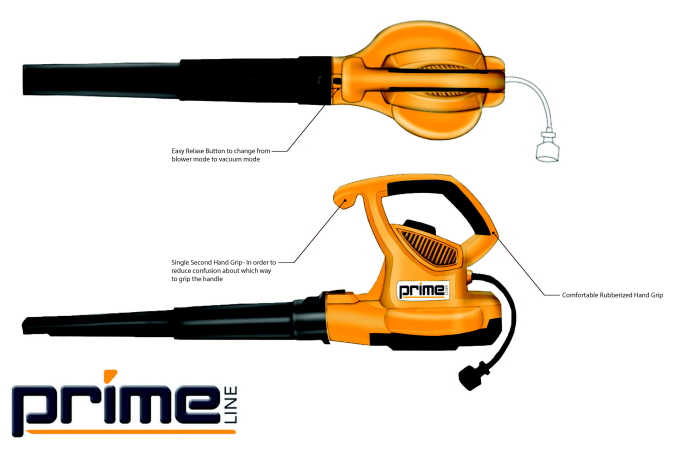

Additional Sketchbook Pro renderings of orthographic views.
Sketchbook Pro rendering showing how to attach the vacuum to the leaf blower.
gLike
Leaf Blower Redesign
Design a new outer shell for a Toro brand leaf blower using its original components.
